A while back, I put up a helpful Xamarin.Tip on how to create a simple CircleView in Xamarin.Forms for a BadgeView control – Xamarin.Controls – BadgeView

Since then, I’ve used this simple concept to create some more useful controls that are unique and dynamic in their own way. In this post, we will look at using the CircleView to create an InitialsCircleView. This view is a simple Xamarin.Forms control to show a person’s initials. It is extremely useful in place of user avatars or profile pictures and can add a nice touch to your User Interface without much work at all.

Let’s start by re-iterating how to build a simple CircleView:

In your Xamarin.Forms project, create a new class:

CircleView.cs

public class CircleView : BoxView
{
    public static readonly BindableProperty CornerRadiusProperty = BindableProperty.Create(nameof(CornerRadius), typeof(double), typeof(CircleView), 0.0);

    public double CornerRadius
    {
        get { return (double)GetValue(CornerRadiusProperty); }
        set { SetValue(CornerRadiusProperty, value); }
    }

    public CircleView()
    {
    }
}

And create your native renderers:

AndroidCircleViewRenderer.cs

public class CircleViewRenderer : BoxRenderer
{
    private float _cornerRadius;
    private RectF _bounds;
    private Path _path;

    public CircleViewRenderer(Context context)
        : base(context)
    {

    }

    protected override void OnElementChanged(ElementChangedEventArgs<BoxView> e)
    {
        base.OnElementChanged(e);

        if (Element == null)
        {
            return;
        }
        var element = (CircleView)Element;

        _cornerRadius = TypedValue.ApplyDimension(ComplexUnitType.Dip, (float)element.CornerRadius, Context.Resources.DisplayMetrics);

    }

    protected override void OnSizeChanged(int w, int h, int oldw, int oldh)
    {
        base.OnSizeChanged(w, h, oldw, oldh);
        if ((w != oldw && h != oldh) || _bounds == null)
        {
            _bounds = new RectF(0, 0, w, h);
        }

        _path = new Path();
        _path.Reset();
        _path.AddRoundRect(_bounds, _cornerRadius, _cornerRadius, Path.Direction.Cw);
        _path.Close();
    }

    public override void Draw(Canvas canvas)
    {
        canvas.Save();
        canvas.ClipPath(_path);
        base.Draw(canvas);
        canvas.Restore();
    }
}

iOSCircleViewRenderer.cs

public class CircleViewRenderer : BoxRenderer
{
    protected override void OnElementChanged(ElementChangedEventArgs<BoxView> e)
    {
        base.OnElementChanged(e);

        if (Element == null)
            return;

        Layer.MasksToBounds = true;
        Layer.CornerRadius = (float)((CircleView)Element).CornerRadius / 2.0f;
    }
}

Okay, cool we can draw circles in Xamarin.Forms easily with

<suave:CircleView .../>

So now let’s build a Xamarin.Forms component on top of this for our InitialsCircleView. The key pieces to making this view unique and cool is:

• Circle color
• Font size
• Font color
• Font family
• Circle Radius (in case you don’t really want a circle)

Let’s write the ContentView in XAML, but you could easily do it in C# too:

InitialsCircleView.xaml

<ContentView xmlns="http://xamarin.com/schemas/2014/forms"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:components="clr-namespace:SuaveControls.Components"
    x:Class="SuaveControls.Components.InitialsCircleView">
    <ContentView.Content>
        <Grid x:Name="Container">
            <components:CircleView x:Name="Circle" Margin="16" HorizontalOptions="Fill" VerticalOptions="Fill" Color="{Binding CircleColor}" CornerRadius="{Binding CornerRadius}"/>
            <Label x:Name="InitialsLabel" VerticalOptions="Center" HorizontalOptions="Center" HorizontalTextAlignment="Center" TextColor="{Binding TextColor}" Font="{Binding Font}" FontSize="{Binding FontSize}" />
        </Grid>
    </ContentView.Content>
</ContentView>

So now we have the layout of our InitialsCirlceView, let’s look at the code behind to see how we apply all these different properties and bind them to this internal view:

InitialsCircleView.xaml.cs

public partial class InitialsCircleView : ContentView
{
    public static BindableProperty CircleColorProperty = BindableProperty.Create(nameof(CircleColor), typeof(Color), typeof(InitialsCircleView), Color.White);
    public static BindableProperty TextColorProperty = BindableProperty.Create(nameof(TextColor), typeof(Color), typeof(InitialsCircleView), Color.White);
    public static BindableProperty FontSizeProperty = BindableProperty.Create(nameof(FontSize), typeof(int), typeof(InitialsCircleView), 14);
    public static BindableProperty FontProperty = BindableProperty.Create(nameof(Font), typeof(Font), typeof(InitialsCircleView), Font.Default);
    public static BindableProperty CornerRadiusProperty = BindableProperty.Create(nameof(CornerRadius), typeof(double), typeof(InitialsCircleView), 0.0, propertyChanged: (bindable, oldVal, newVal) =>
    {
        var initialsView = bindable as InitialsCircleView;
        if (initialsView != null)
            initialsView.UpdateCornerRadius((double)newVal);
    });
    public static BindableProperty NameProperty = BindableProperty.Create(nameof(Name), typeof(string), typeof(InitialsCircleView), string.Empty,
    propertyChanged: (bindable, oldVal, newVal) =>
    {
        var initialsView = bindable as InitialsCircleView;
        if (initialsView != null)
            initialsView.UpdateTextWithName(newVal?.ToString());
    });

    public double CornerRadius
    {
        get
        {
            return (double)GetValue(CornerRadiusProperty);
        }
        set
        {
            SetValue(CornerRadiusProperty, value);
        }
    }
    public string Name
    {
        get
        {
            return (string)GetValue(NameProperty);
        }
        set
        {
            SetValue(NameProperty, value);
        }
    }
    public int FontSize
    {
        get
        {
            return (int)GetValue(FontSizeProperty);
        }
        set
        {
            SetValue(FontSizeProperty, value);
        }
    }
    public Font Font
    {
        get
        {
            return (Font)GetValue(FontProperty);
        }
        set
        {
            SetValue(FontProperty, value);
        }
    }
    public Color CircleColor
    {
        get
        {
            return (Color)GetValue(CircleColorProperty);
        }
        set
        {
            SetValue(CircleColorProperty, value);
        }
    }
    public Color TextColor
    {
        get
        {
            return (Color)GetValue(TextColorProperty);
        }
        set
        {
            SetValue(TextColorProperty, value);
        }
    }


    public InitialsCircleView()
    {
        InitializeComponent();
        Container.BindingContext = this;
    }

    /// <summary>
    /// Updates the name of the text with.
    /// </summary>
    /// <param name="name">Name.</param>
    private void UpdateTextWithName(string name)
    {
        if (string.IsNullOrEmpty(name))
            return;

        var separateWords = name.Split(' ');
        if(separateWords.Length > 0)
        {
            var initialsArray = separateWords.Select(word => word[0].ToString().ToUpper()).ToArray(); // array of string of initials upper cased
            if(initialsArray.Length > 1)
            {
                // grab the first and last
                initialsArray = new string[2] { initialsArray[0], initialsArray[initialsArray.Length - 1] };
            }
            var initialsString = string.Join(string.Empty, initialsArray);
            InitialsLabel.Text = initialsString;
        }
        else
        {
            InitialsLabel.Text = string.Empty;
        }
    }

    /// <summary>
    /// Updates the corner radius.
    /// </summary>
    /// <param name="radius">Radius.</param>
    private void UpdateCornerRadius(double radius)
    {
        Circle.CornerRadius = radius;
    }
}

We have a few properties that are directly bound to the subviews in the XAML which is facilitated by applying the Container.BindingContext = this;.

We also have a property for Name which invokes the internal UpdateTextWithName method. This in turn takes the name of a person, grabs the initials, and sets the text of the Label to it. So we can then use it by just passing a person or thing’s name and let it figure out the initials naturally. So if we say:

var initialsCirle = new InitialsCirlceView
{
    Name = "Alex Dunn"
}

The output will be “AD” in the cirlce.

Here’s how you can now use it in your XAML:

MainPage.xaml

...
<components:InitialsCircleView
    CircleColor="Red"
    FontSize="32"
    Name="Alex Dunn"
    VerticalOptions="Center"
    HorizontalOptions="Center"
    TextColor="White"
    CornerRadius="90"
    WidthRequest="120"
    HeightRequest="120"/>

...

Here’s what it looks like!

You can also create XAML Styles for it instead of managing all the colors and font options everywhere you use it.

If you like what you see, don’t forget to follow me on twitter @Suave_Pirate, check out my GitHub, and subscribe to my blog to learn more mobile developer tips and tricks!

Interested in sponsoring developer content? Message @Suave_Pirate on twitter for details.

Here’s a quick and fun tip to add a little flare to your Xamarin applications whether in Xamarin.Forms or Xamarin Native! In a later post, we will also look at how to use the Shake Gesture to create useful tools for yourself as a developer, or for your users! This fun post is the foundation for the more serious stuff and will show you how to use the Shake Recognition to do just about anything you want.

In order to handle shake gestures natively, we have to write some Xamarin Native code, but we will assume you are using Xamarin.Forms. We’ll start with Android.

Android Shake Detection

Android is the more complicated between the two major platforms. The process is basically this:

• Listen to Accelerometer events
• Check value changes of the x, y, and z axis
• Compare deltas against a threshold to determine if motion is a shake
• Execute the fun stuff!

Let’s do this in the MainActivity since every Xamarin.Forms application needs at least that. If you are using Xamarin Native or a mix, then you may want to implement this elsewhere such as your Application class or abstracted with a shared BaseActvity or add it as a field to the Activities you want it in.

MainActivity.cs

/// <summary>
/// Main Activity and entry point for Xamarin.Forms
/// </summary>
public class MainActivity : Activity, Android.Hardware.ISensorEventListener
{
    #region Shake properties
    bool hasUpdated = false;
    DateTime lastUpdate;
    float lastX = 0.0f;
    float lastY = 0.0f;
    float lastZ = 0.0f;

    const int ShakeDetectionTimeLapse = 250;
    const double ShakeThreshold = 800;
    #endregion


    /// <summary>
    /// Sets up the internal lifecycle for registering views and the shake detection
    /// </summary>
    /// <param name="savedInstanceState">Saved instance state.</param>
    protected override void OnCreate(Bundle savedInstanceState)
    {
        base.OnCreate(savedInstanceState);

        // all the other set up stuff here

        // shake management set up
        // Register this as a listener with the underlying service.
        var sensorManager = GetSystemService(SensorService) as Android.Hardware.SensorManager;
        var sensor = sensorManager.GetDefaultSensor(Android.Hardware.SensorType.Accelerometer);
        sensorManager.RegisterListener(this, sensor, Android.Hardware.SensorDelay.Game);

    }


    #region Android.Hardware.ISensorEventListener implementation

    /// <summary>
    /// Handles when the sensor range changes
    /// </summary>
    /// <param name="sensor">Sensor.</param>
    /// <param name="accuracy">Accuracy.</param>
    public void OnAccuracyChanged(Android.Hardware.Sensor sensor, Android.Hardware.SensorStatus accuracy)
    {
    }

    /// <summary>
    /// Detects sensor changes and is set up to listen for shakes.
    /// </summary>
    /// <param name="e">E.</param>
    public async void OnSensorChanged(Android.Hardware.SensorEvent e)
    {
        if (e.Sensor.Type == Android.Hardware.SensorType.Accelerometer)
        {
            var x = e.Values[0];
            var y = e.Values[1];
            var z = e.Values[2];

            // use to check against last time it was called so we don't register every delta
            var currentTime = DateTime.Now;
            if (hasUpdated == false)
            {
                hasUpdated = true;
                lastUpdate = currentTime;
                lastX = x;
                lastY = y;
                lastZ = z;
            }
            else
            {
                if ((currentTime - lastUpdate).TotalMilliseconds > ShakeDetectionTimeLapse)
                {
                    var diffTime = (float)(currentTime - lastUpdate).TotalMilliseconds;
                    lastUpdate = currentTime;
                    var total = x + y + z - lastX - lastY - lastZ;
                    var speed = Math.Abs(total) / diffTime * 10000;

                    if (speed > ShakeThreshold)
                    {
                        // We have a shake folks!
                        await EasterEggAsync();
                    }

                    lastX = x;
                    lastY = y;
                    lastZ = z;
                }
            }
        }
    }

    /// <summary>
    /// Execute the easter egg async.
    /// </summary>
    protected virtual async Task EasterEggAsync()
    {
        // HEY OVER HERE! DO SOMETHING COOL!
    }
#endregion

}

Now all you have to do is add whatever your easter egg logic is in the EasterEggAsync method! In this method, you can also track what the current Xamarin.Forms Page is visible by tracking the App.Current.MainPage to add some context to the page your in.

Now let’s look at the iOS implementation.

iOS Shake Detection

iOS makes this process a whole lot easier. We don’t have to do any crazy accelerometer calculations, state tracking, or any of the gross stuff above for Android. Instead, we simply use the built in Gesture API from UIKit and register that we are listening to these types of gestures in the AppDelegate:

AppDelegate.cs

[Register("AppDelegate")]
public class AppDelegate : UIApplicationDelegate
{

    public override UIWindow Window { get; set; }
    public static AppDelegate Current { get; private set; }


    public override bool FinishedLaunching(UIApplication application, NSDictionary launchOptions)
    {
        // Allow shake detection
        UIApplication.SharedApplication.ApplicationSupportsShakeToEdit = true;

        // make this more accessible
        Current = this;
        Forms.Init();

        // we did it! the app is launched!
        return true;
    }
}

Now that we have registered with the UIApplication.SharedApplication.ApplicationSupportsShakeToEdit, we can start overriding the gesture recognizer. If you’re using Xamarin.Forms, you can do this right in the AppDelegate but if you’re not, then you can use this override method in any ViewController or even any sub-UIView class!

/// <summary>
/// Handles when a general motion has ended on the view controller.
/// We use this to detect the shake of the phone to execute and easter egg
/// </summary>
/// <param name="motion">Motion.</param>
/// <param name="evt">Evt.</param>
public override async void MotionEnded(UIEventSubtype motion, UIEvent evt)
{
    Console.WriteLine("Motion detected");
    if (motion == UIEventSubtype.MotionShake)
    {
        Console.WriteLine("and was a shake");

        await EasterEggAsync();
    }
}

/// <summary>
/// Execute the easter egg async.
/// </summary>
protected virtual async Task EasterEggAsync()
{
    // HEY OVER HERE! DO SOMETHING COOL!
}

// if you're in the view controller then you also need to:

public override bool CanBecomeFirstResponder
{
    get
    {
        return true;
    }
}

/// <summary>
/// Enables the first responder set to allow for shake detection
/// </summary>
/// <param name="animated">If set to <c>true</c> animated.</param>
public override void ViewWillAppear(bool animated)
{
    base.ViewWillAppear(animated);
    this.BecomeFirstResponder();
    // .. other logic
}

Doing this enabled the gesture to be picked up at the application level or in the current UIViewController. You need to ensure the CanBecomeFirstResponder is true and that you call BecomeFirstResponder() on appearing so that the MotionEnded override can be called.

Once again, just fill in the EasterEggAsync method with whatever easter egg you want to invoke!

Conclusion

Easter eggs can make a neat experience in your mobile applications, but using this shake gesture can also help make debugging easier as well as give a QA team the chance to quickly move through stories in the app. In a future post, we will talk more about these possibilities and the benefits of building testing and development options into your apps for testing rather than user-focused and fun easter eggs.

If you like what you see, don’t forget to follow me on twitter @Suave_Pirate, check out my GitHub, and subscribe to my blog to learn more mobile developer tips and tricks!

Interested in sponsoring developer content? Message @Suave_Pirate on twitter for details.

So how many times have you looked this up? Maybe tried an open source control that didn’t quite work the way you wanted or was super restricted? Just used two different images and switch their IsVisible flag depending if it was tapped or not?
Screw that.

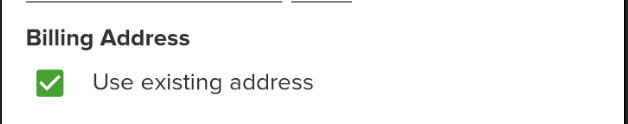

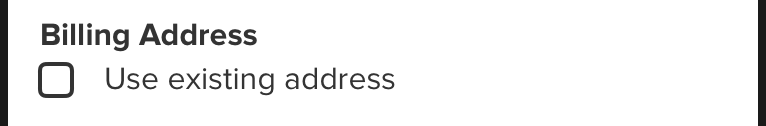

Here’s how you can build your own nice looking checkboxes for iOS and Android with Xamarin.Forms.

Getting Everything Together

So Android has a built in Checkbox view – so the decision on how to handle that is easy. However, iOS doesn’t like checkboxes… note sure why, but they don’t and don’t have a good built in UIControl for it. You could build your own, but I would suggest using BEMCheckbox: https://github.com/Boris-Em/BEMCheckBox

This thing looks good, works well, is super flexible, and well supported. Even better, our super awesome community has wrapped it in a good binding library and stuck it on NuGet!

GitHub: https://github.com/saturdaymp/XPlugins.iOS.BEMCheckBox
NuGet: https://www.nuget.org/packages/SaturdayMP.XPlugins.iOS.BEMCheckBox/

Let’s focus on using this for the iOS renderer, and get started building this damn thing once and for all.

The Xamarin.Forms Side

We’re going to need a bunch of properties for colors for different states, as well as a Command and Event for handling when the check changes. Here’s the class to encapsulate all that:

Checkbox.cs

using System;
using System.Windows.Input;
using Xamarin.Forms;
...

/// <summary>
/// A xamarin.forms custom checkbox control that will use native renderers under the hood
/// </summary>
public class Checkbox : View
{
    public event EventHandler OnCheckChanged;

    public static BindableProperty OutlineColorProperty = BindableProperty.Create(nameof(OutlineColor), typeof(Color), typeof(Checkbox), Color.Black);
    public static BindableProperty InnerColorProperty = BindableProperty.Create(nameof(InnerColor), typeof(Color), typeof(Checkbox), Color.White);
    public static BindableProperty CheckColorProperty = BindableProperty.Create(nameof(CheckColor), typeof(Color), typeof(Checkbox), Color.Black);
    public static BindableProperty CheckedOutlineColorProperty = BindableProperty.Create(nameof(CheckedOutlineColor), typeof(Color), typeof(Checkbox), Color.Black);
    public static BindableProperty CheckedInnerColorProperty = BindableProperty.Create(nameof(CheckedInnerColor), typeof(Color), typeof(Checkbox), Color.White);
    public static BindableProperty IsCheckedProperty = BindableProperty.Create(nameof(IsChecked), typeof(bool), typeof(Checkbox), false, BindingMode.TwoWay);
    public static BindableProperty CheckedCommandProperty = BindableProperty.Create(nameof(CheckedCommand), typeof(ICommand), typeof(Checkbox), null);
    public static BindableProperty CheckedCommandParameterProperty = BindableProperty.Create(nameof(CheckedCommandParameter), typeof(object), typeof(Checkbox), null);

    public object CheckedCommandParameter
    {
        get
        {
            return GetValue(CheckedCommandParameterProperty);
        }
        set
        {
            SetValue(CheckedCommandParameterProperty, value);
        }
    }
    public ICommand CheckedCommand
    {
        get
        {
            return (ICommand)GetValue(CheckedCommandProperty);
        }
        set
        {
            SetValue(CheckedCommandProperty, value);
        }
    }
    public bool IsChecked
    {
        get
        {
            return (bool)GetValue(IsCheckedProperty);
        }
        set
        {
            SetValue(IsCheckedProperty, value);
        }
    }
    public Color CheckColor
    {
        get
        {
            return (Color)GetValue(CheckColorProperty);
        }
        set
        {
            SetValue(CheckColorProperty, value);
        }
    }
    public Color InnerColor
    {
        get
        {
            return (Color)GetValue(InnerColorProperty);
        }
        set
        {
            SetValue(InnerColorProperty, value);
        }
    }
    public Color OutlineColor
    {
        get
        {
            return (Color)GetValue(OutlineColorProperty);
        }
        set
        {
            SetValue(OutlineColorProperty, value);
        }
    }
    public Color CheckedInnerColor
    {
        get
        {
            return (Color)GetValue(CheckedInnerColorProperty);
        }
        set
        {
            SetValue(CheckedInnerColorProperty, value);
        }
    }
    public Color CheckedOutlineColor
    {
        get
        {
            return (Color)GetValue(CheckedOutlineColorProperty);
        }
        set
        {
            SetValue(CheckedOutlineColorProperty, value);
        }
    }

    public void FireCheckChange()
    {
        OnCheckChanged?.Invoke(this, new CheckChangedArgs
        {
            IsChecked = IsChecked
        });
    }

    public class CheckChangedArgs : EventArgs
    {
        public bool IsChecked { get; set; }
    }
}

Now that we have a component set up to manage all the different colors and handle the checked state and events, we need to create native renderers to use and update these!

Let’s start with Android.

Android Checkbox Renderer

Android has a built in CheckBox control, so we can use that directly in our renderer. Here’s what that might look like:

AndroidCheckboxRenderer.cs

using System;
using Android.Content;
using Android.Content.Res;
using Android.Support.V7.Widget;
using Android.Widget;
using Xamarin.Forms;
using Xamarin.Forms.Platform.Android;
...

/// <summary>
/// Xamarin.Forms custom renderer for the Checkbox control
/// </summary>
public class CheckboxRenderer : ViewRenderer<Checkbox, AppCompatCheckBox>, CompoundButton.IOnCheckedChangeListener
{
    private const int DEFAULT_SIZE = 28;

    public CheckboxRenderer(Context context) : base(context)
    {
    }

    /// <summary>
    /// Used for registration with dependency service to ensure it isn't linked out
    /// </summary>
    public static void Init()
    {
        // intentionally empty
    }

    /// <summary>
    /// Update element bindable property from event
    /// </summary>
    /// <param name="buttonView">Button view.</param>
    /// <param name="isChecked">If set to <c>true</c> is checked.</param>
    public void OnCheckedChanged(CompoundButton buttonView, bool isChecked)
    {
        ((IViewController)Element).SetValueFromRenderer(Checkbox.IsCheckedProperty, isChecked);
        Element.CheckedCommand?.Execute(Element.CheckedCommandParameter);
    }

    public override SizeRequest GetDesiredSize(int widthConstraint, int heightConstraint)
    {
        var sizeConstraint = base.GetDesiredSize(widthConstraint, heightConstraint);

        if (sizeConstraint.Request.Width == 0)
        {
            var width = widthConstraint;
            if (widthConstraint <= 0)
            {
                System.Diagnostics.Debug.WriteLine("Default values");
                width = DEFAULT_SIZE;
            }
            else if (widthConstraint <= 0)
            {
                width = DEFAULT_SIZE;
            }

            sizeConstraint = new SizeRequest(new Size(width, sizeConstraint.Request.Height),
                new Size(width, sizeConstraint.Minimum.Height));
        }

        return sizeConstraint;
    }


    /// <summary>
    /// Called when the control is created or changed
    /// </summary>
    /// <param name="e">E.</param>
    protected override void OnElementChanged(ElementChangedEventArgs<Checkbox> e)
    {
        base.OnElementChanged(e);
        if (e.NewElement != null)
        {
            if (Control == null)
            {
                var checkBox = new AppCompatCheckBox(Context);

                if (Element.OutlineColor != default(Color))
                {
                    var backgroundColor = GetBackgroundColorStateList(Element.OutlineColor);
                    checkBox.SupportButtonTintList = backgroundColor;
                    checkBox.BackgroundTintList = GetBackgroundColorStateList(Element.InnerColor);
                    checkBox.ForegroundTintList = GetBackgroundColorStateList(Element.OutlineColor);

                }
                checkBox.SetOnCheckedChangeListener(this);
                SetNativeControl(checkBox);
            }

            Control.Checked = e.NewElement.IsChecked;
        }
    }


    protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)
    {
        base.OnElementPropertyChanged(sender, e);
        if (e.PropertyName == nameof(Element.IsChecked))
        {
            Control.Checked = Element.IsChecked;
        }
        else
        {
            var backgroundColor = GetBackgroundColorStateList(Element.CheckColor);
            Control.SupportButtonTintList = backgroundColor;
            Control.BackgroundTintList = GetBackgroundColorStateList(Element.InnerColor);
            Control.ForegroundTintList = GetBackgroundColorStateList(Element.OutlineColor);
        }
    }

    /// <summary>
    /// Sync from native control
    /// </summary>
    /// <param name="sender">Sender.</param>
    /// <param name="e">E.</param>
    private void CheckBoxCheckedChange(object sender, CompoundButton.CheckedChangeEventArgs e)
    {
        Element.IsChecked = e.IsChecked;
    }


    private ColorStateList GetBackgroundColorStateList(Color color)
    {
        return new ColorStateList(
            new[]
            {
                new[] {-global::Android.Resource.Attribute.StateEnabled}, // checked
                new[] {-global::Android.Resource.Attribute.StateChecked}, // unchecked
                new[] {global::Android.Resource.Attribute.StateChecked} // checked
            },
            new int[]
            {
                color.WithSaturation(0.1).ToAndroid(),
                color.ToAndroid(),
                color.ToAndroid()
            });
    }

}

This is basically just setting up the ColorStateList for the control based on the colors from the controls and then wiring up the state to and events to the Xamarin.Forms control we created and the native Android Checkbox.

Now let’s look at iOS.

iOS Checkbox Renderer

Unlike Android, iOS does NOT have any form of a Checkbox control. The most common workaround for this is to use a simple image of a check and a square and interchange them and manage the state. But we want more flexibility, animations, and all the fun stuff that comes with a fully built control.

Here’s how we solved this issue for this particular set of Controls – using the BEMCheckBox.

BEMCheckBox is a third party control from Boris-Em and our lovely Xamarin.Community has already created Bindings for it AND a NuGet package. Here are the links:

• Original Control: https://github.com/Boris-Em/BEMCheckBox
• Binding Library: https://github.com/saturdaymp/XPlugins.iOS.BEMCheckBox
• NuGet: https://www.nuget.org/packages/SaturdayMP.XPlugins.iOS.BEMCheckBox/

Be sure to install this NuGet package in your iOS project, and then we can get to work on the renderer:

iOSCheckboxRenderer.cs

using System;
using SaturdayMP.XPlugins.iOS;
using Xamarin.Forms;
using Xamarin.Forms.Platform.iOS;
...

/// <summary>
/// Xamarin.Forms custom renderer for the Checkbox control
/// </summary>
public class CheckboxRenderer : ViewRenderer<Checkbox, BEMCheckBox>
{
    private const int DEFAULT_SIZE = 28;

    /// <summary>
    /// Used for registration with dependency service to ensure it isn't linked out
    /// </summary>
    public static void Initialize()
    {
        // intentionally empty
    }


    public override SizeRequest GetDesiredSize(double widthConstraint, double heightConstraint)
    {
        var sizeConstraint = base.GetDesiredSize(widthConstraint, heightConstraint);

        if (sizeConstraint.Request.Width == 0)
        {
            var width = widthConstraint;
            if (widthConstraint <= 0)
            {
                System.Diagnostics.Debug.WriteLine("Default values");
                width = DEFAULT_SIZE;
            }
            else if (widthConstraint <= 0)
            {
                width = DEFAULT_SIZE;
            }

            sizeConstraint = new SizeRequest(new Size(width, sizeConstraint.Request.Height),
                new Size(width, sizeConstraint.Minimum.Height));
        }

        return sizeConstraint;
    }


    /// <summary>
    /// Called when the control is created or changed
    /// </summary>
    /// <param name="e">E.</param>
    protected override void OnElementChanged(ElementChangedEventArgs<Checkbox> e)
    {
        base.OnElementChanged(e);
        if (e.NewElement != null)
        {
            if (Control == null)
            {
                var checkBox = new BEMCheckBox();

                checkBox.BoxType = BEMBoxType.Square;
                checkBox.OnAnimationType = BEMAnimationType.Fill;
                checkBox.OffAnimationType = BEMAnimationType.Fill;

                // set default colors
                UpdateColors(checkBox);

                SetNativeControl(checkBox);
            }

            Control.On = e.NewElement.IsChecked;
            Control.ValueChanged += Control_ValueChanged;
        }
    }

    protected override void OnElementPropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)
    {
        base.OnElementPropertyChanged(sender, e);
        if(e.PropertyName == nameof(Element.IsChecked))
        {
            Control.On = Element.IsChecked;
        }
        else
        {
            UpdateColors(Control);
        }
    }

    void Control_ValueChanged(object sender, EventArgs e)
    {
        Element.IsChecked = Control.On;
        Element.CheckedCommand?.Execute(Element.CheckedCommandParameter);
    }

    private void UpdateColors(BEMCheckBox nativeCheckBox)
    {
        nativeCheckBox.TintColor = Element.OutlineColor.ToUIColor();
        nativeCheckBox.OffFillColor = Element.InnerColor.ToUIColor();
        nativeCheckBox.OnFillColor = Element.CheckedInnerColor.ToUIColor();
        nativeCheckBox.OnTintColor = Element.CheckedOutlineColor.ToUIColor();
        nativeCheckBox.OnCheckColor = Element.CheckColor.ToUIColor();
    }
}

We follow the same sort of pattern as we did with the Android renderer, but this time we use the BEMCheckBox and wire up the colors, animation styles (which you can change to whatever you want), and setup the events and state.

Using the CheckBox

Now we can use this in our XAML with bindings and styles and everything. We can use it in lists for multi select, or anywhere else!

MainPage.xaml

...
 <StackLayout Orientation="Horizontal" Spacing="16">
    <components:Checkbox CheckedCommandParameter="{Binding .}" IsChecked="{Binding UseExistingAddress}" VerticalOptions="Center" OutlineColor="{DynamicResource PrimaryTextColor}" CheckedOutlineColor="{DynamicResource PrimaryTextColor}" CheckColor="{DynamicResource PrimaryColor}"  WidthRequest="{StaticResource CheckboxSize}" HeightRequest="{StaticResource CheckboxSize}"/>
    <Label Text="Use existing address" VerticalOptions="Center" Style="{DynamicResource BodySecondary}"/>
</StackLayout>
...

See how good it looks?

iOS with empty fill:

Android with fill:

If you like what you see, don’t forget to follow me on twitter @Suave_Pirate, check out my GitHub, and subscribe to my blog to learn more mobile developer tips and tricks!

Interested in sponsoring developer content? Message @Suave_Pirate on twitter for details.
